Oscilloscope,In 1 Handheld 20000 Tester 3.5-inch Hds2202s 3 In Tester 3.5-inch Color 3.5-inch Color Lcd Handheld 200mhz Dual 3 In 1 Channels Rms 20000 Rms 20000 Tester Lcd Reable Type-c Dsfen

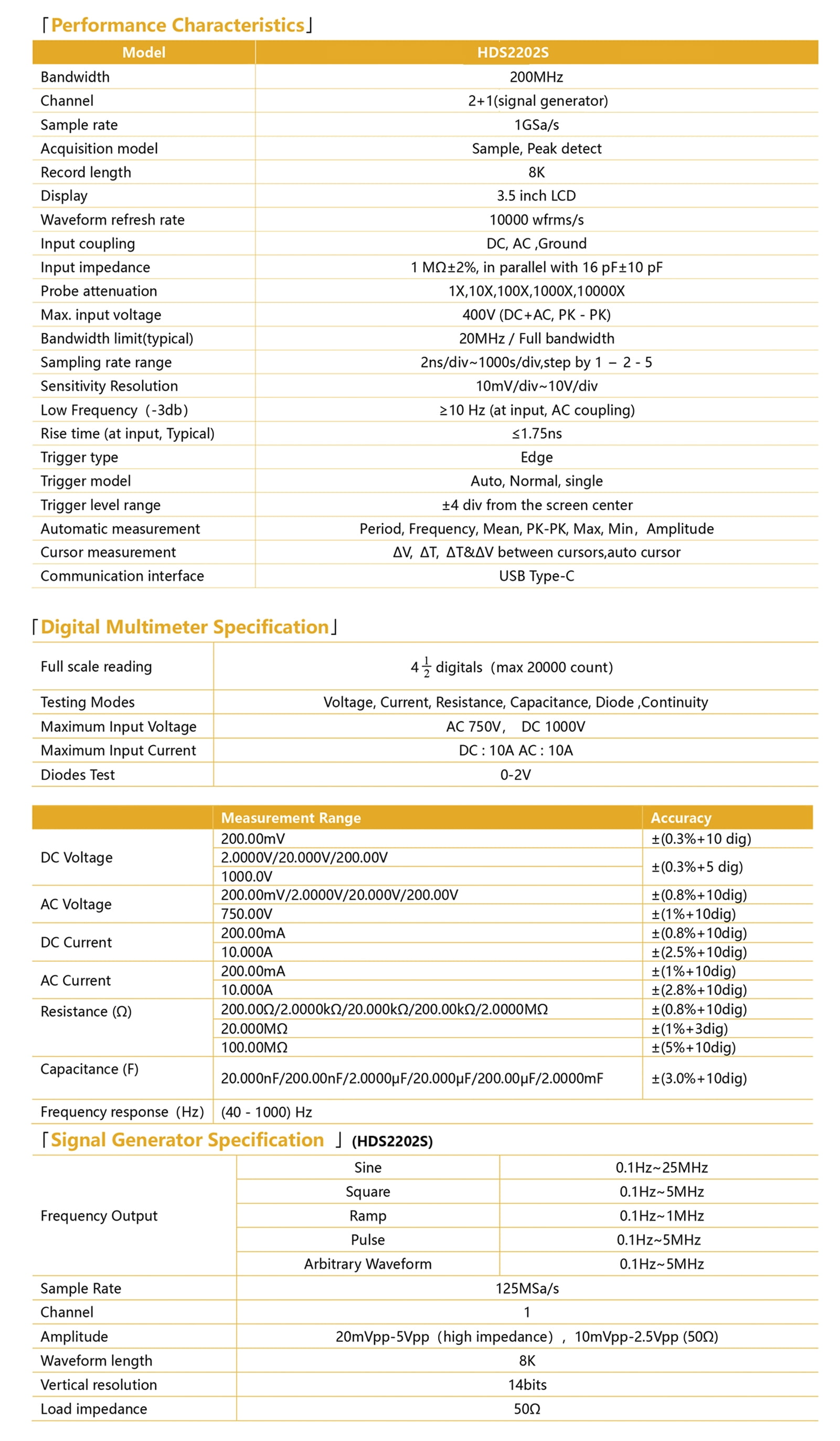

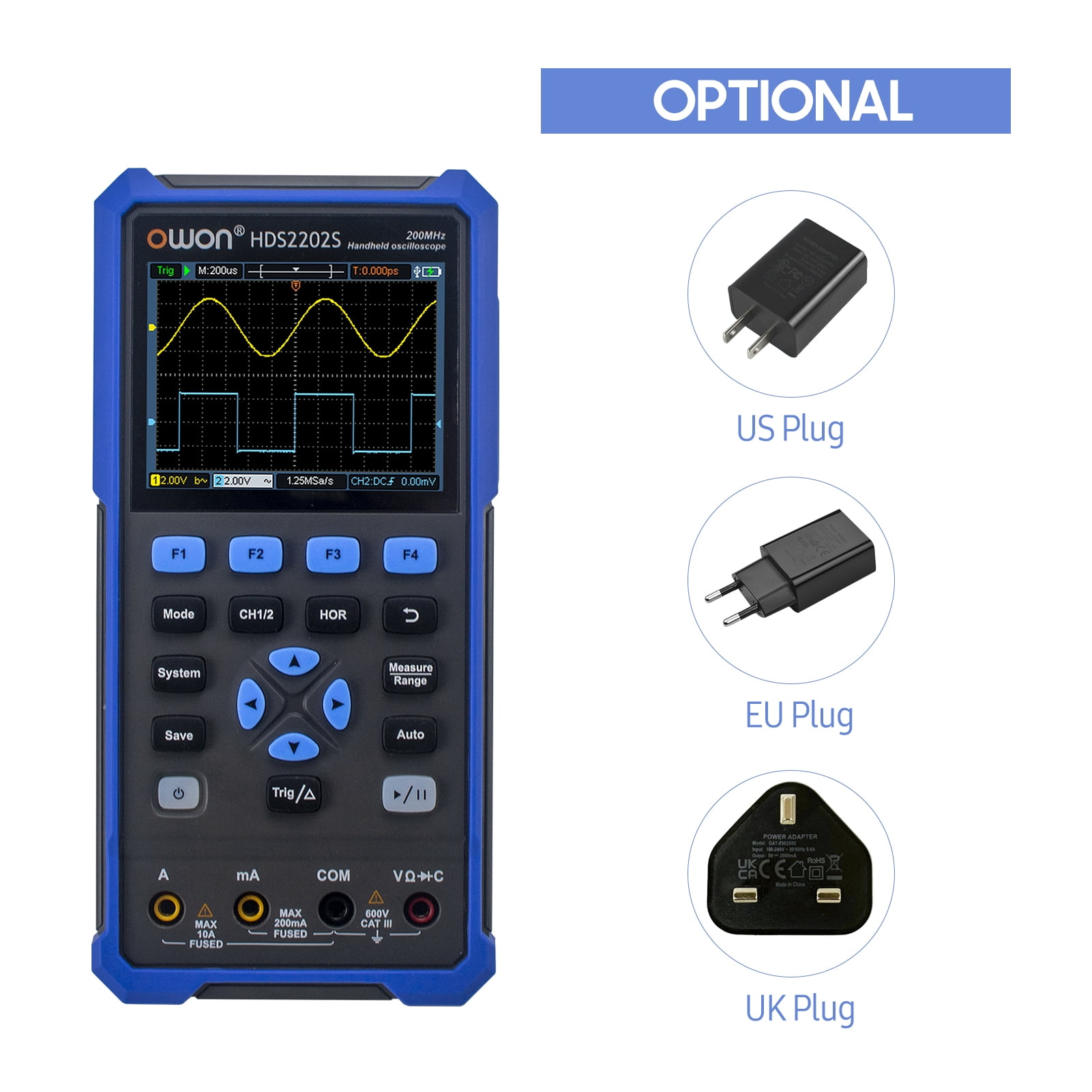

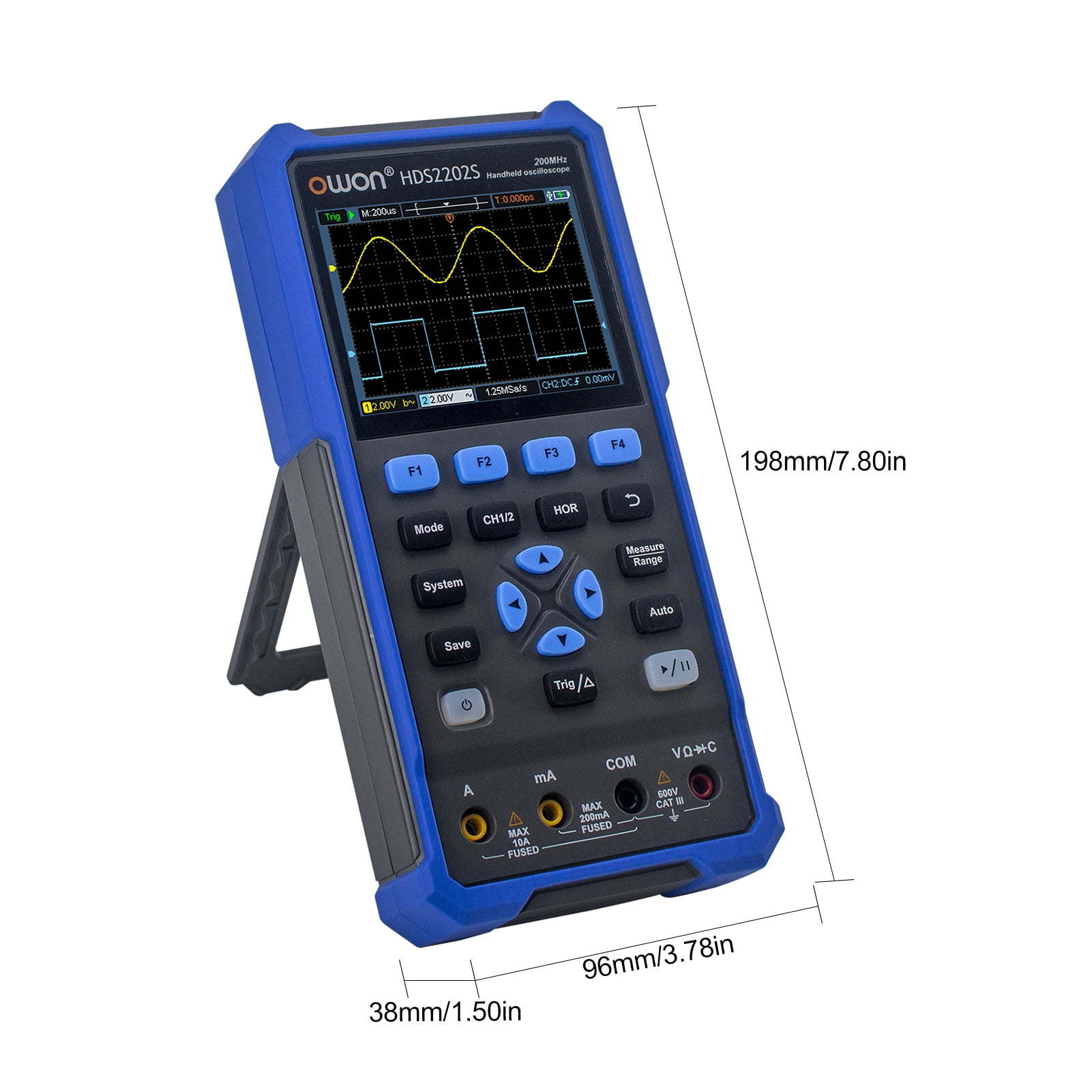

OWON HDS2202S 3 in 1 Handheld Digital Oscilloscope Multimeter Waveform Generator 200MHz 1GSa/s Dual Channels Oscilloscope True RMS 20000 Counts Multi Tester 3.5-inch Color LCD Rechargeable Type-C Interface<br><br>This is a portable multifunctional instrument for maintenance, on-site measurement, automobile maintenance, detection and more. Digital LCD color display is easy for reading, built-in rechargeable battery ensures strong endurance, and zipper carry bag is convenient for portability. One machine in hand, worry-free testing in multiple scenes.<br><br>Specifications:<br>Interface: Type-C USB Interface<br>Multimeter: 20000 Counts<br>Oscilloscope Channel: 2<br>Package Size: 24 * 16 * 9cm / 9.45 * 6.30 * 3.54in<br>Item Weight: 518g / 1.14lbs<br>Battery: 2 * 3.7V 2600mAh Battery<br>Testing Modes: Voltage (AC 750V, 1000V), Current (AC 10A, 10A), Resistance, Capacitance, Diode (0-2V), Continuity<br>Package Weight: 1092g / 2.41lbs<br>Oscilloscope Sample Rate: 1GSa/s<br>Signal Generator Sample Rate: 125MSa/s<br>Plug: / / UK (Optional)<br>Bandwidth: 200MHz<br>Item Size: 198 * 96 * 38mm / 7.80 * 3.78 * 1.50in<br>Signal Generator Channel: 1<br>Signal Generator: 25MHz<br>Material: ABS<br>Color: Black &amp; Blue<br>Display: 3.5-inch LCD<br><br><br>[Wide of Use]One machine in hand, worry-free testing in multiple scenes. Suitable for maintenance, on-site measurement, automobile maintenance, detection, etc..<br><br>Package List:<br>1 * Oscilloscope Probe<br>2 * BNC to Alligator Clip<br>2 * Measuring Pen<br>1 * Adapter<br>1 * Carry Bag<br>1 * Oscilloscope<br>1 * Type-C USB Cable<br>1 Bag of Probe Adjustment Accessories<br>1 * User Manual (English)<br><br><br>[3 in 1 Multifunction Instrument]Oscilloscope -- dual channels input, 200MHz bandwidth, 1GSa/s sampling rate. Multimeter -- true RMS, 20000 counts, auto , voltage/ current/ resistance/ diode/ capacitance/ continuity testing. Waveform generator -- output sine, , ramp, pulse, and arbitrary waveform; 1 channel, 125MSa/s sampling rate, 8k waveform length.<br><br>[Digital LCD Display]3.5-inch high-resolution, high-contrast color LCD display, clear at a glance, easy to read even in dark environment. Supports self-calibration function. SCPI supported, facilitates secondary development.<br><br>Note:Color and size may be slightly different due to manual measurement and different light conditions. Thanks for understanding.<br><br>[Rechargeable, PC Software Supported]Built in with 5200mAh battery, provides about 4 hours long working time. Low comprehensive consumption, -saving. Type-C USB interface, comes with USB cable and adapter for easy and quick charging, supports PC software connection.<br><br>[Reliable Quality, Small Size]ABS shell is sturdy and , compact and lightweight, comfortable to hold, easy to operate, portable to carry. Foldable bracket is convenient to use and space-saving when not in use.

• [Digital LCD Display] 3.5-inch high-resolution, high-contrast color LCD display, clear at a glance, easy to read even in dark environment. Supports self-calibration function. SCPI supported, facilitates secondary development.

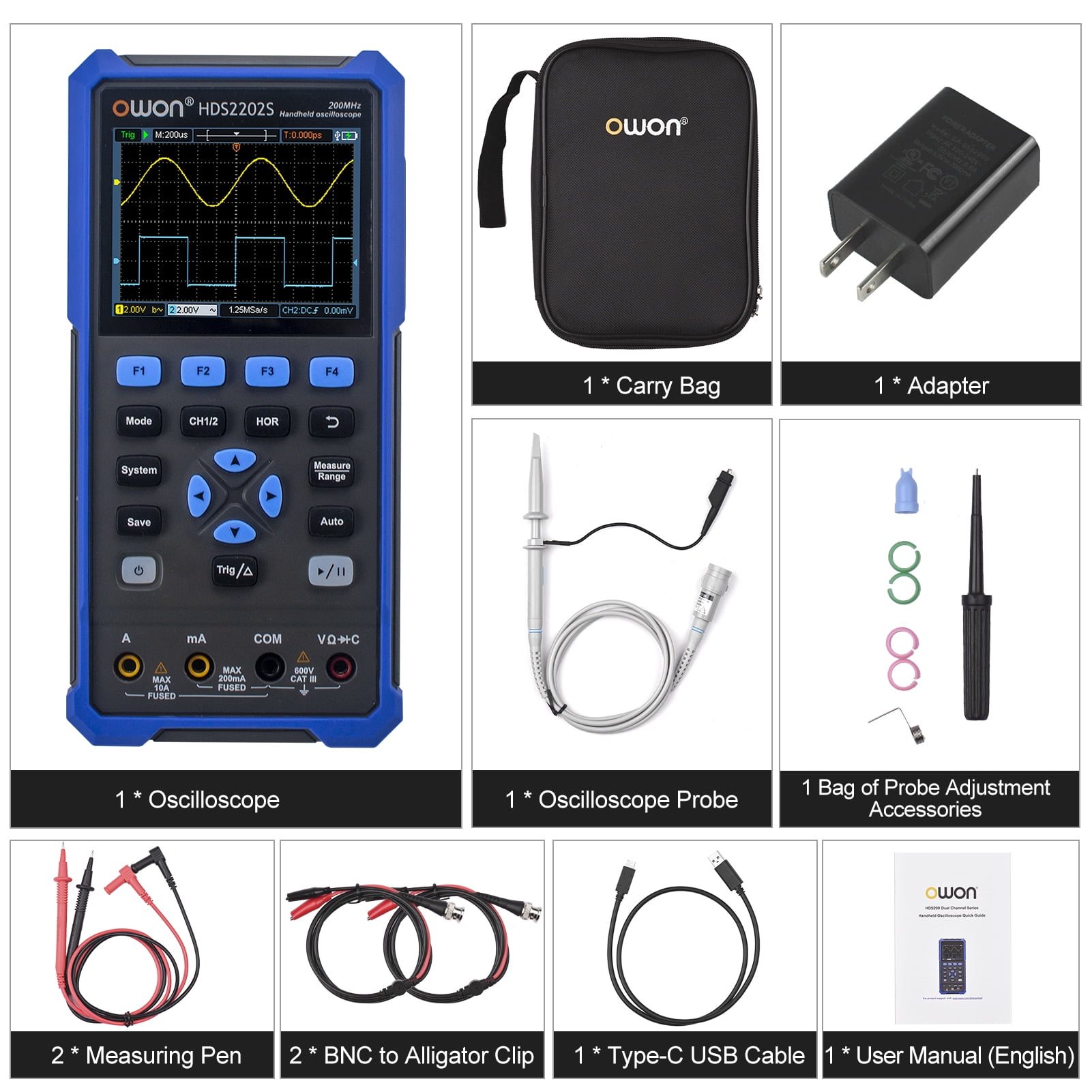

• [Rechargeable, PC Software Supported] Built in with 5200mAh lithium battery, provides about 4 hours long working time. Low comprehensive power consumption, power-saving. Type-C USB interface, comes with USB cable and power adapter for easy and quick charging, supports PC software connection.

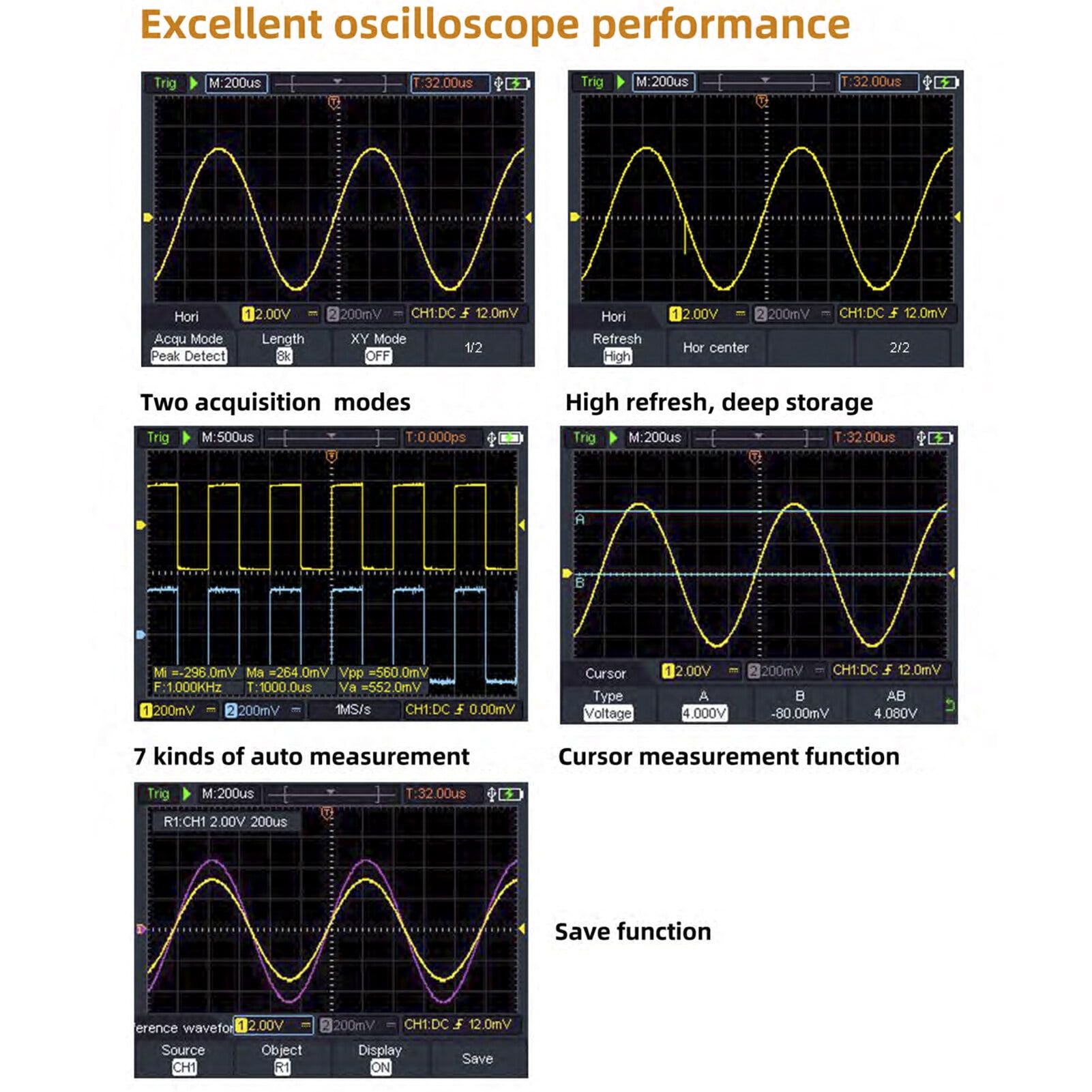

• [3 in 1 Multifunction Instrument] Oscilloscope -- dual channels input, 200MHz bandwidth, 1GSa/s sampling rate. Multimeter -- true RMS, 20000 counts, auto range, voltage/ current/ resistance/ diode/ capacitance/ continuity testing. Waveform generator -- output sine, square, ramp, pulse, and arbitrary waveform; 1 channel, 125MSa/s sampling rate, 8k waveform length.
• [Reliable Quality, Small Size] ABS plastic shell is sturdy and High quality, compact and lightweight, comfortable to hold, easy to operate, portable to carry. Foldable bracket is convenient to use and space-saving when not in use.
• [Wide Range of Use] One machine in hand, worry-free testing in multiple scenes. Suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc..
